Plate Freezers

Product Overview

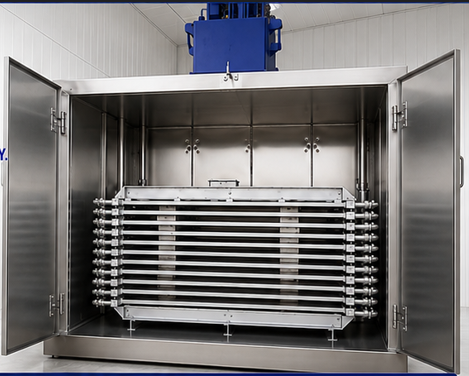

The Plate Freezer is designed for fast and efficient freezing of seafood products such as shrimp and fish. It is suitable for freezing products in slabs with uniform temperature control, hygienic construction, and reliable performance for seafood processing and freezing plants.

Key Features:

  • 500, 750 & 1000kg freezing capacity per hour
  • Suitable for shrimp, Fish, Fruits and Vegetables
  • Compact and efficient plate freezer design
  • Stainless Steel 304 grade insulated cabinet
  • Food-Grade Screen Shutter Model Equipped with an Advanced Remote-Control System for Smooth and Efficient Operation
  • Heavy-Duty Plate Lifting System with Double-Acting Hydraulic Cylinders for Safe, Stable, and Reliable Operation

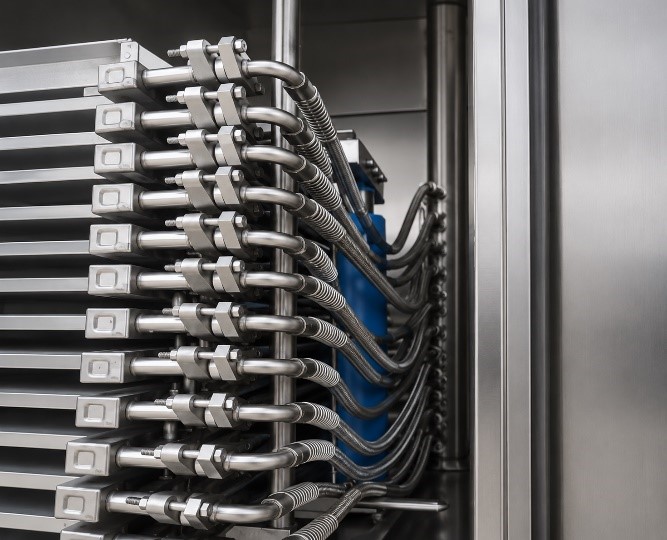

  • Aluminium freezing plates with hot gas defrost provision
  • Hot gas / water defrost system
  • Digital thermometer for temperature monitoring

Technical Specifications:

  • Product Inlet Temperature: +10°C
  • Product Outlet Temperature: Approx. -18°C
  • Freezing Time: 70–80 minutes
  • Product Thickness: 2 inches
  • Plate Material: Bored Aluminium, Jindal make
  • Refrigerant System: Ammonia liquid pump circulation, overfeed type
  • Defrost System: Hot gas / water defrost
  • Cabinet Cladding: Stainless Steel 304 grade, 2B finish
  • Headers: SS 304 grade, Schedule 40 suction and liquid headers
  • Hydraulic System: Double acting cylinder power pack, suitable up to -60°C
  • Temperature Monitoring: Digital thermometer
