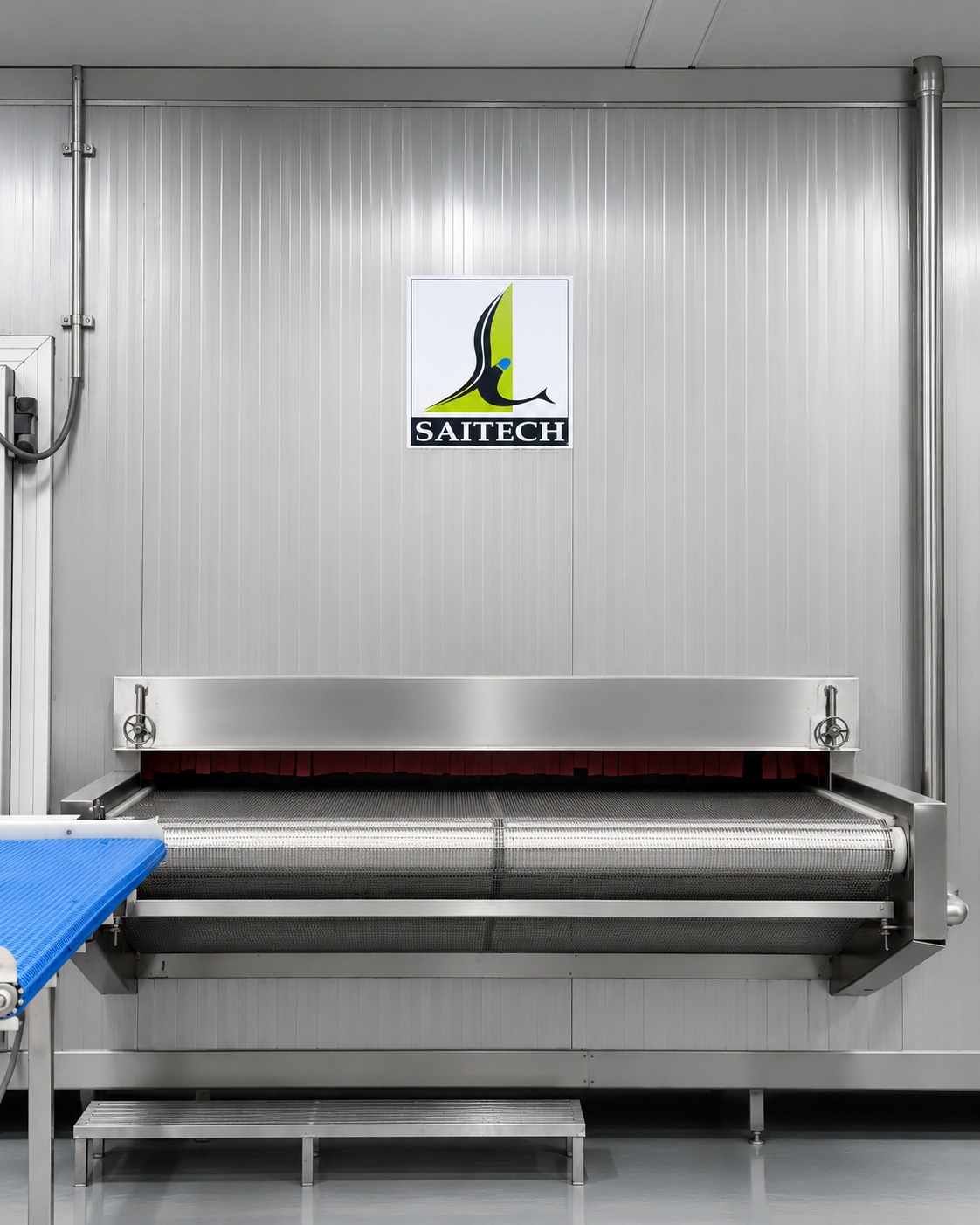

IQF (Individual Quick Freezer)

Product Overview

SAITECH IQF (Individual Quick Freezer) is a high-performance freezing solution engineered to deliver rapid, uniform, and hygienic freezing for a wide range of food products. Designed with advanced airflow technology and premium food-grade stainless steel construction, our IQF systems preserve the freshness, texture, flavor, and nutritional value of every product while ensuring maximum operational efficiency.

Key Features:

  • High-capacity freezing up to 750 kg/hour
  • Advanced Double Impingement Airflow Technology for rapid and uniform freezing
  • Achieves an air temperature of -40°C for superior product quality
  • Adjustable freezing time to suit different products and sizes
  • Premium SS 304 food-grade construction for hygiene and corrosion resistance
  • Energy-efficient high-velocity air circulation system
  • Food-grade stainless steel conveyor with smooth product handling
  • PLC-based fully automatic operation with Siemens touch-screen control
  • Auto and manual operating modes with remote connectivity support
  • Designed for freezing shrimp, seafood, fish, meat, poultry, fruits, and vegetables
  • Easy maintenance with robust industrial design
  • Suitable for continuous operation in demanding processing environments

Technical Specifications:

  • Type: Tunnel Type Individual Quick Freezer (IQF)
  • Freezing Capacity 500 kg/750 kg/1 ton per hour
  • Freezing Principle: Double Impingement Technology
  • Product Outlet Temperature: Approximately -18°C
  • Freezing Time:Adjustable from 4 to 30 minutes
  • Tunnel Size: 10 m × 4.425 m × 2.720 m
  • Insulation : 150 mm PUF Panels (40 kg/m³ density)
  • Construction Material: SS 304 Grade (Food Grade)
  • Evaporator Coils: SS 304 Tubes with Magnesium-Aluminum Fins
  • Remote Monitoring: Tele-connectivity for software updates
  • Suitable Products Shrimp, Fish, Seafood, Meat, Poultry, Fruits & Vegetables
